Ridge RG4

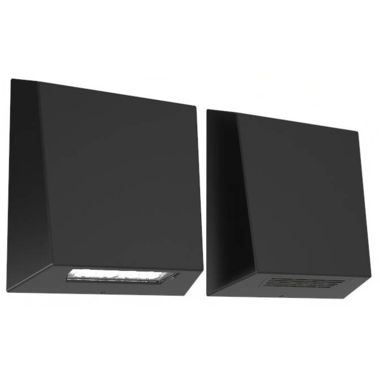

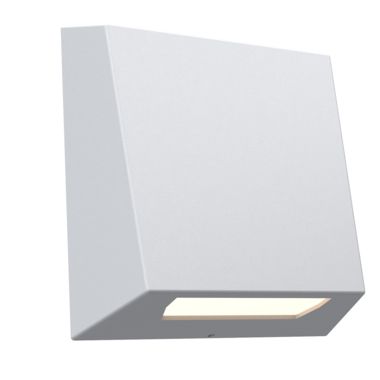

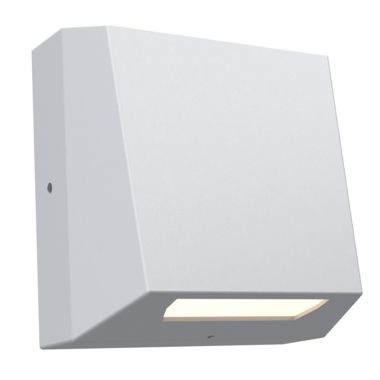

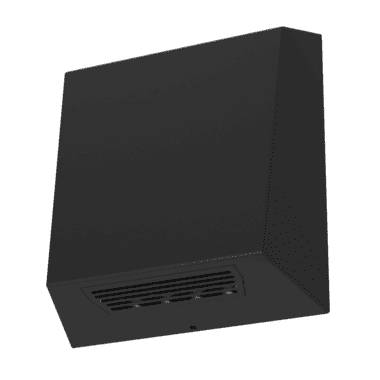

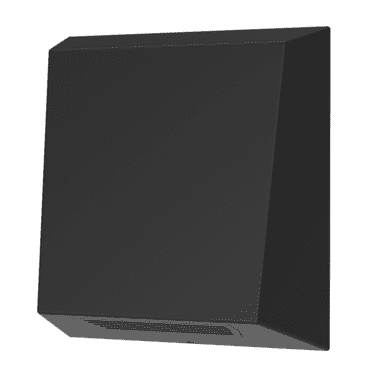

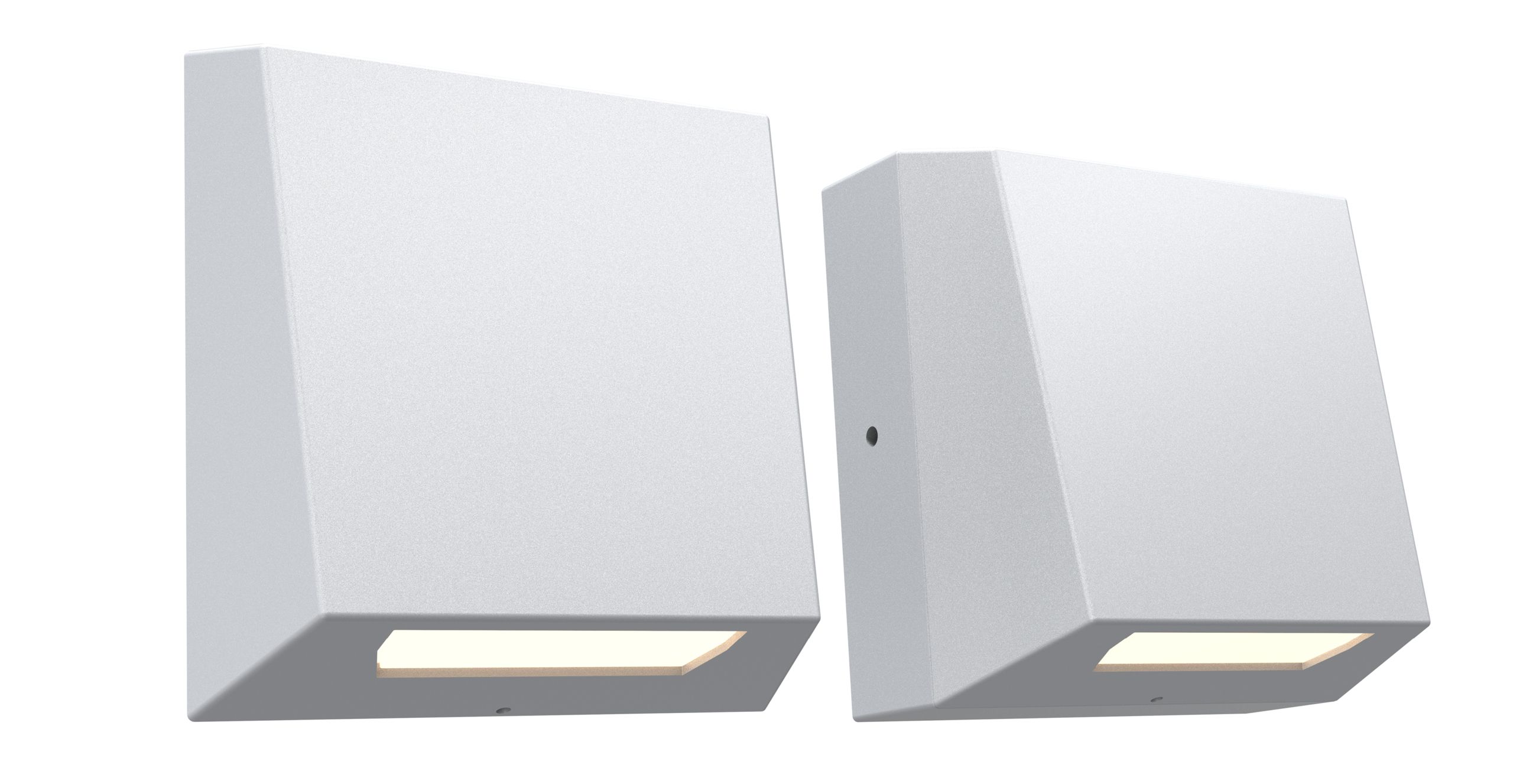

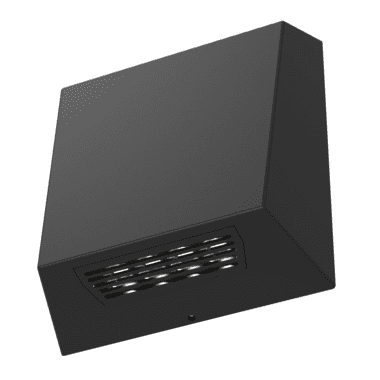

Ridge RG4 - LS1282

A modern and stylish surface-mounted wall light that boasts a smooth, angular design and multiple height and spacing configurations.

配制这款产品 Features 产品配置附件

产品总览

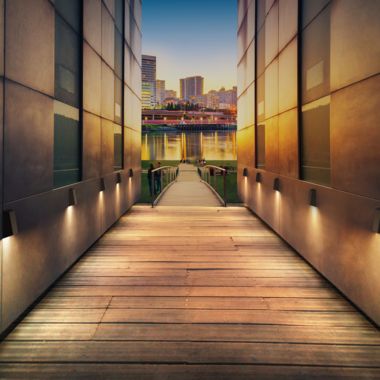

The Ridge RG4 is a modern and stylish surface-mounted wall light that boasts a smooth, angular design, easily installed in a range of height and spacing configurations. Its design and wide beam distribution allows for greater spacing opportunities, maintaining excellent uniformity levels to suit exterior and interior environments.

Features

Lumen Output 700 lm Power Consumption 10 W Typical Lifetime 72,000 Hrs (L90 B10) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz IP Rating IP65 IK Rating IK9 Compliance

Color Options Warm White

Warm White

Cool White

Data Sheet

产品配置

附件

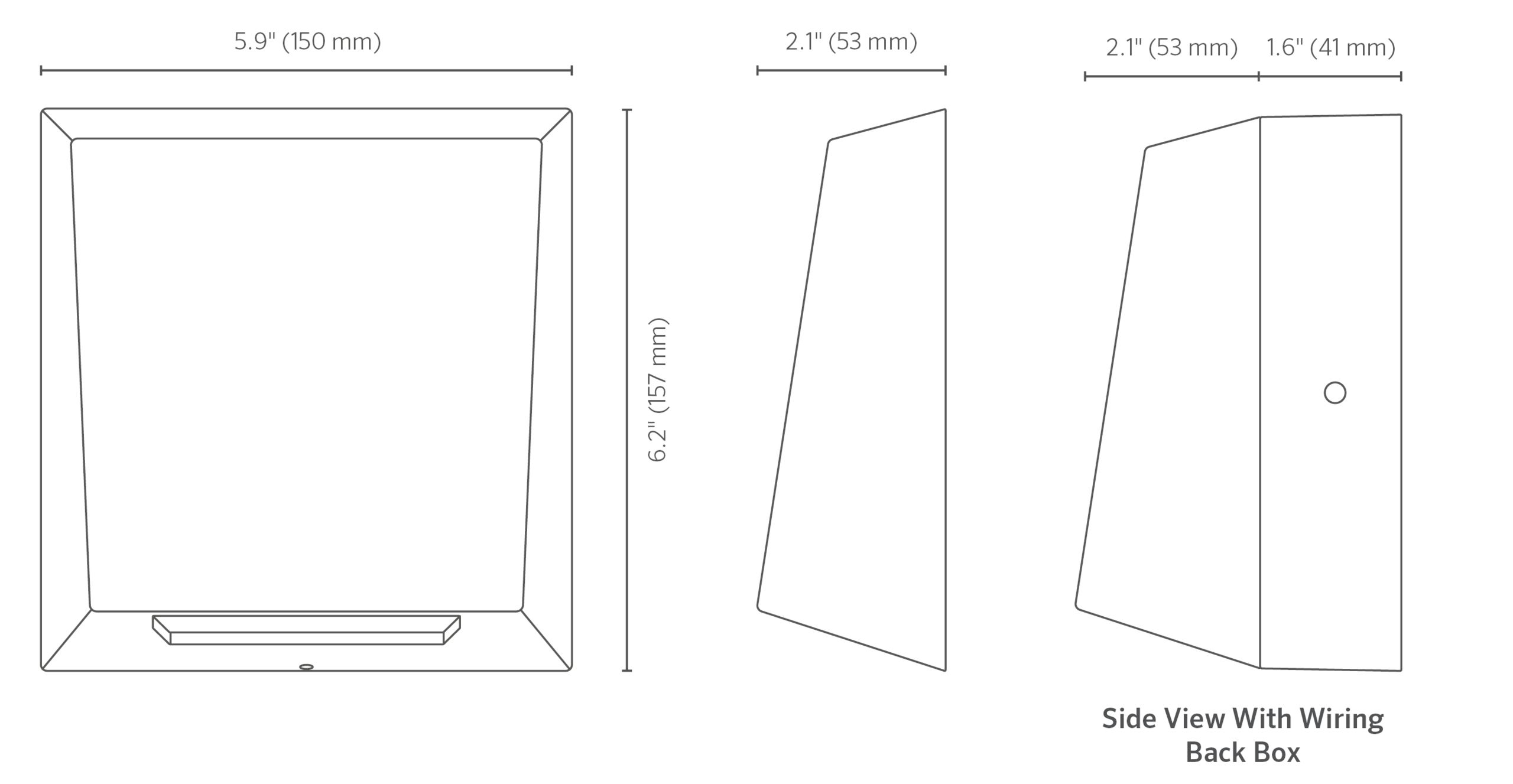

LS6336	Wiring Back Box

下载

Data Sheet 安装手册

IES Files LS1282 ZIP (4.79 KB) DXF Files LS1282 ZIP (111.84 KB) Product Flyer LS1282 PDF (182.95 KB) Height and Spacing Tool V4 XLSX (687.95 KB)

技术专利

Product Configurator

LS1282 _ _ _ _ _ _

登录查询价格

重设为默认清除选择添加

Customise Ridge RG4 below

Power Consumption

For all PowerSync Controlled Luminaires

Required

10 W (10D)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Wide (MD)

100º x 75º

Input Voltage

Required

220 to 240 Vac, 50 Hz (01)

Line Voltage

Control

Required

DALI (DL)

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info

Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info

Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info

Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray

More info

Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info

White (WT)

RAL9016 from RAL Classic collection

More info

Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info

Latte (LT)

RAL7006 from RAL Classic collection

More info

Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info

Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info
