Linealux L5 Generation 2

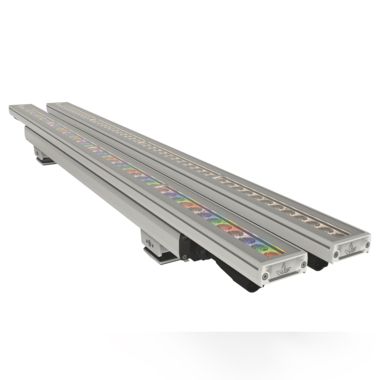

Linealux L5 Generation 2 - LS9050

一种高功率建筑线性洗墙灯

配制这款产品 Features 产品配置附件

产品总览

Linealux L5 是一款高功率，建筑等级灯具，结合了高科技和优越的性能，采用了时尚的线性设计元素。有白光，彩色光和可调白光引擎供选择。Linealux L5 产品配备有EasyGlow™视觉舒适技术和和CoolDrive™热管理技术。PowerSync™技术可通过常规协议来实现高精密度数字化控制。独特的光学设计让即使在宽光束角首尾连接的情况下依旧呈现完美光效。灯光界的专家们在高效型*和标准型LED产品方面有了更多的选择，也有了更广阔的创新可行性。

*减少光透过光学元件后的分散，减少光束中的光条，缩短混色距离

配件
LS6213	外罩/ 防眩光罩 - 单侧 - 1'
LS6214	外罩/ 防眩光罩 - 单侧 - 2'
LS6215	外罩/ 防眩光罩 - 单侧 - 3'
LS6216	外罩/ 防眩光罩 - 单侧 - 4'
LS6217	外罩/ 防眩光罩 - 三面 - 1'
LS6218	外罩/ 防眩光罩 - 三面 - 2'
LS6219	外罩/ 防眩光罩 - 三面 - 3'
LS6220	外罩/ 防眩光罩 - 三面 - 4'
LS6209	外置防眩光格栅 - 1'
LS6210	外置防眩光格栅 - 2'
LS6211	外置防眩光格栅 - 3'
LS6212	外置防眩光格栅 - 4'
LS6417	连接件

Features

Lumen Output 2,163 lm/ft Power Consumption 19 W/ft, 23 W/ft Typical Lifetime (TM21 Reported) > 60,000 hours @ 50°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 71,575 hours @ 50°C Ambient (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz Earth Leakage 0.2 mA @ 120 Vac, 0.42 mA @ 240 Vac, 0.24 mA @ 277 Control Interface PowerSync Control Protocol DMX/RDM, Artnet, PWM, 0-10 V (Sink or Source) IP Rating IP66 / IP67 (Passes IP68 Test) IK Rating IK6 Vibration Resistance 3G Rating (ANSI 136.31) Compliance

Color Options Warm White

Data Sheet

产品配置

附件


Control
LS6540	PowerSync Data Injector, Line Voltage, Generation 2

Wiring
LS6402C-PS	Leader Cable, Line Voltage, 4-Core, PowerSync
LS6402C-2.5-PS	Leader Cable, Line Voltage, 4-Core, PowerSync, 2.5 mm²
LS6404C-PS	Jumper Cable, Line Voltage, 4-Core, PowerSync
LS6404C -2.5-PS	Jumper Cable, Line Voltage, 4-Core, PowerSync, 2.5 mm²

Glare Control
LS6209	External / Slatted Louver- 1'
LS6210	External / Slatted Louver- 2'
LS6211	External / Slatted Louver- 3'
LS6212	External / Slatted Louver- 4'
LS6213	External Shield / Visor 1-sided - 1'
LS6214	External Shield / Visor 1-sided - 2'
LS6215	External Shield / Visor 1-sided - 3'
LS6216	External Shield / Visor 1-sided - 4'
LS6217	External Shield / Visor 3-sided - 1'
LS6218	External Shield / Visor 3-sided - 2'
LS6219	External Shield / Visor 3-sided - 3'
LS6220	External Shield / Visor 3-sided - 4'

Mounting
LS6147	Link Key
LS6221-06	6" (152 mm) Stand Off Bracket
LS6221-12	12" (305 mm) Stand Off Bracket
LS6221-18	18" (47 mm) Stand-Off Bracket
LS6221-24	24" (610 mm) Stand-Off Bracket
LS6221-48	48" (1,219 mm) Stand-Off Bracket
