Terraluz TE5

Terraluz TE5 - LS3150

一种高输出，线性地埋灯

配制这款产品 Features 产品配置附件

产品总览

A high output linear inground that combines technology and performance in a stylish linear form factor featuring a bezel-less edge to edge glass slab cover with a sealed ± 15° tilt adjustment. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Available in a range of lengths and combined with unique and flexible T and L junctions enables the luminaire to be installed in multiple orientations including continuous linear. Available in white, colour changing and tunable white light engines.

Features

Lumen Output 7,785 lm LED Power 12 W/ft | 16 W/ft Power Consumption 19 W/ft | 24 W/ft Typical Lifetime (TM21 Reported) > 60,000 hours (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours (B10, L90, TM21 Projected) Input Voltage 120-277 Vac, 50/60 Hz Earth Leakage 0.6 mA @ 220 V Control Interface PowerSync™ Control Protocol DMX/RDM, Artnet, PWM, 0-10 V IP Rating IP66 / IP67 (IP68 Tested) IK Rating IK9 Compliance

Color Options Warm White

Data Sheet

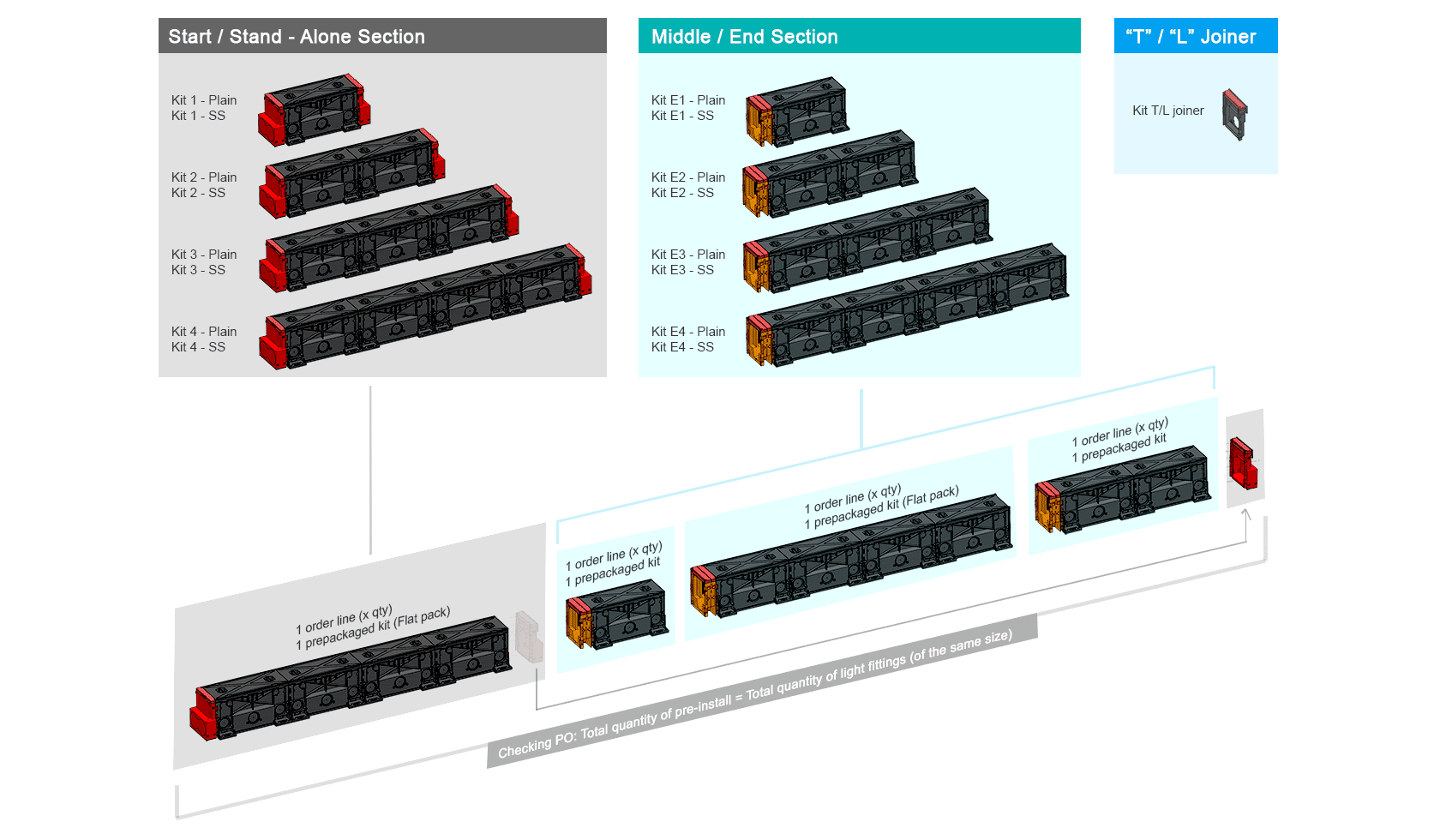

产品配置

附件


Control
LS6540	PowerSync Data Injector, Line Voltage, Generation 2 (Required for PS installations only)

Wiring
LS6402C-PS	Leader Cable, Line Voltage, 4-Core, PowerSync
LS6402C-2.5-PS	Leader Cable, Line Voltage, 4-Core, PowerSync, 2.5 mm²
LS6404C-PS	Jumper Cable, Line Voltage, 4-Core, PowerSync
LS6404C -2.5-PS	Jumper Cable, Line Voltage, 4-Core, PowerSync, 2.5 mm²
