Vedita VE8 - LS9408LED

一种结构紧凑, 多功能, 低压地埋灯, 含预装壁龛

配制这款产品 Features 产品配置

产品总览

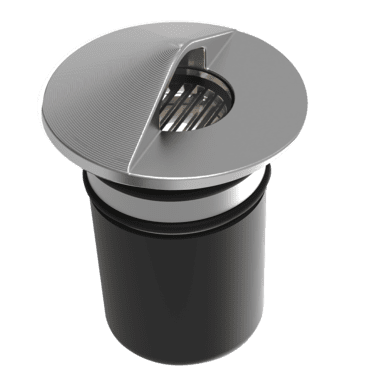

The Vedita VE8 is a versatile in-ground or wall-mounted luminaire that can be dynamically dimmed via Lumascape's d5 Dimming Technology. This luminaire is supplied with a sturdy installation sleeve, ideal for architectural installations. The premium stainless construction ensures long-lasting performance and comes standard with an ElectroPolishPlus™ surface treatment.

Features

Lumen Output 98 lm Power Consumption 3 W Typical Lifetime > 60,000 hours (B10, L70, TM21 Reported) Control Protocol PWM Diameter 1.8" (45 mm) Static Load Rating 992 lb (450 kg) IP Rating IP68 IK Rating IK10 Compliance

Color Options Warm White

Data Sheet

产品配置

下载

Data Sheet

Install Guide (International) LS9401LED PDF (1.15 M) Install Guide (US) LS9401LED PDF (1.22 M) IES Files LS9408LED ZIP (3.99 KB) DXF Files LS9408LED ZIP (89.12 KB)

技术专利

Product Configurator

LS9408LED _ _ _ _ _ _ _ _

登录查询价格

重设为默认清除选择添加

Customise Vedita VE8 below

Power Consumption

Required

3 W (3D)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Single Colour (BLU)

Blue

Trim Style

Required

Stainless Steel (SS)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Flood (FL)

Input Voltage

Required

24 Vdc (07)

Non-Dimmable

Control

Required

Non-Dimmable (ND)

For single color, non-dimming applications only.

PWM Dimmable (DP)

Cable Length

Required

2 m (02)

4 x 0.5 mm² H05RN-F flexible rubber cable

8 m (08)

4 x 0.5 mm² H05RN-F flexible rubber cable

15 m (15)

4 x 0.5mm² H05RN-F flexible rubber cable

20 m (20)

4 x 0.5 mm² H05RN-F flexible rubber cable

25 m (25)

4 x 0.5 mm² H05RN-F flexible rubber cable

Inclusions

Included with product.

Required

Installation Sleeve

Luminaire is supplied with PVC mounting sleeve and trim. The luminaire can be used with or without this assembly. Sleeve is equivalent to a North American 1.5" Schedule 40 conduit.
