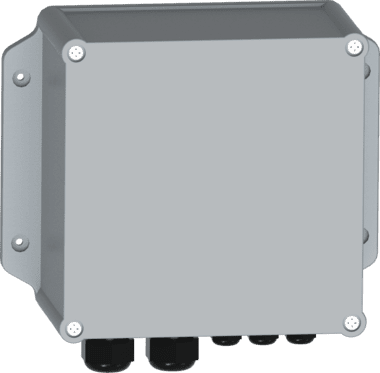

DMX to PWM Translator - LS67100

将标准DMX-512控制信号转化成PWM信号
添加到咨询 Features 产品配置

产品总览

The LS67100 translates standard DMX512 digital control signals to PWM (pulse width modulation) to control a range of Lumascape's PWM-compatible LED luminaires. Connect to any compatible DMX digital contoller to achieve dimming and various colour changing patterns.

Features

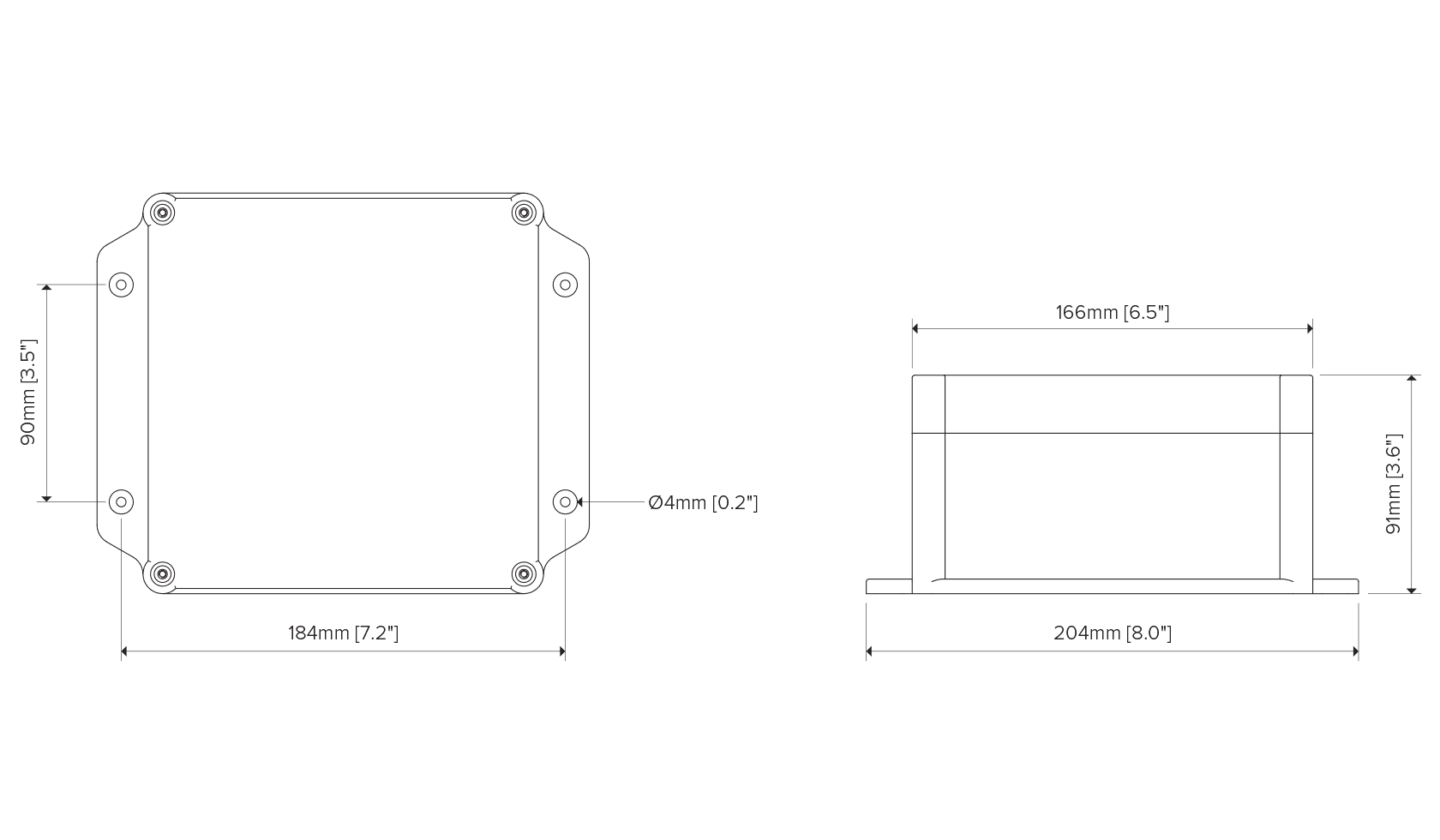

Input Voltage 24 Vdc Output 4 x 2.5 A Output Circuits 4 Dimming Options DMX512 IP Rating IP65 Size 184mm (7.2") x 90mm (3.5") Compliance UL - USA & Canada Data Sheet

产品配置

下载

Data Sheet 安装手册
DXF Files LS67100 ZIP (24.21 KB)
